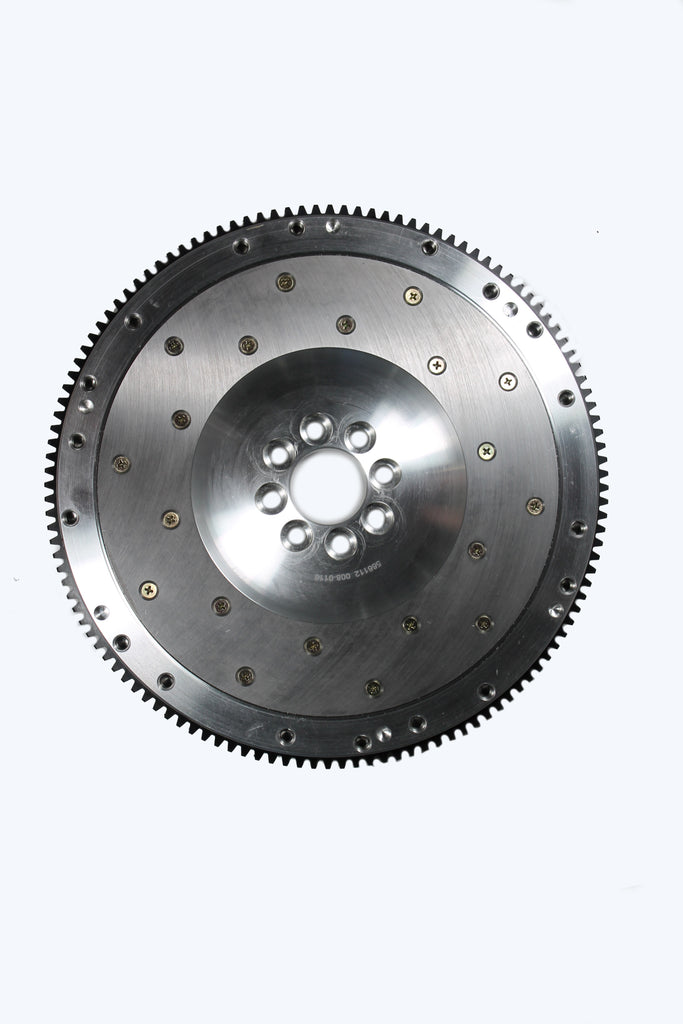

Flywheel: Aluminum: Chevrolet: 1955-85 SBC: 1970-90 BBC: 153T: 15 Lbs.

• • Billet Aluminum 6060-T6. • 1045 Steel Hardened Ring Gear. • SFI rated.

Attributes:

• GTIN: 00887753012067
• Brand Name: McLeod
• Additional Counter Weight Kit Required: 560222
• Crankshaft to Flywheel Bolt Quantity: 6-bolt
• Disc Diameter (in.): 10.500 in.
• Engine 1: 1955-85 SBC 2pc Seal (Large Register)
• Engine 2: 1991-Up BBC 1pc Seal 454, 502, 572 (Large Register)
• Engine 3: 1991-Up BBC 1pc Seal 454, 502, 572 (Large Register)
• Engine Balance: Internal
• Make: Chevrolet
• Marine Use: No
• Material: Billet aluminum
• Note: CENTERBORE/CRANK BOSS: Because of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft boss fit may have variations from slip-fit to slight interference. Interference at the crankshaft “boss” can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care.
• Pressure Plate Style: Borg & Beck/Diaphragm
• Quantity: Sold individually.
• Rear Main Seal Style: 2-piece
• Replaceable Friction Surface: Yes
• Ring Gear Tooth Quantity: 153-tooth
• SFI 1.1 Approved: Yes
• Weight: 15.000 lbs.

Extended Information:

• Country of Origin: United States
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14.5 x 14.5 x 2 inches
• Weight: 15 lb
