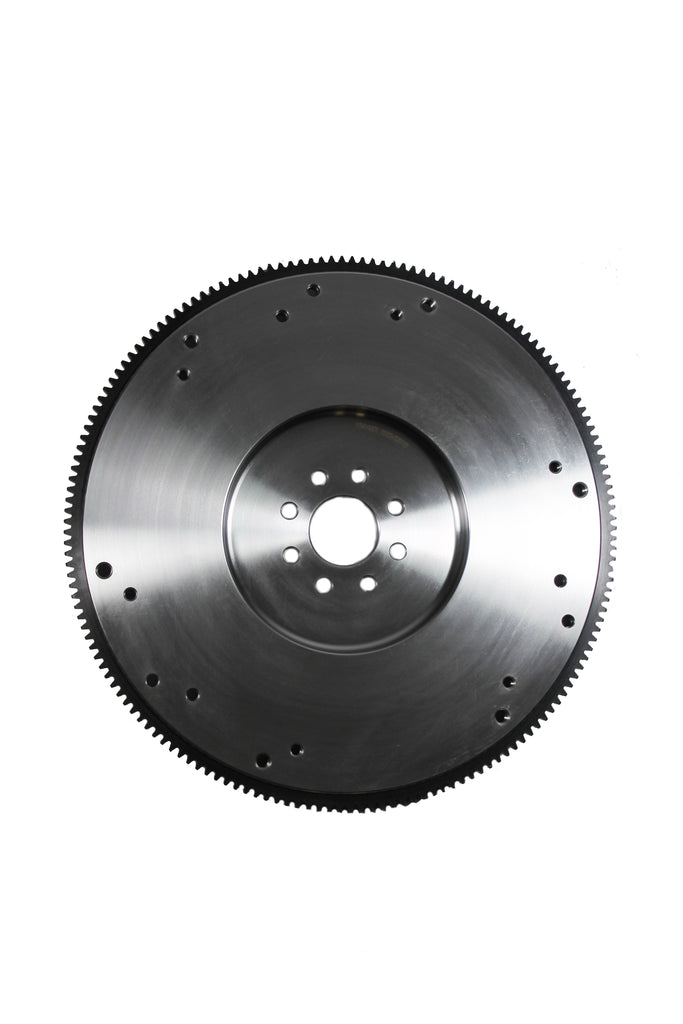

Flywheel: Steel: Mopar 1964-71 HEMI 426 8 Bolt: 143T: 30 Lbs

• • Billet Steel. • 1045 Steel Hardened Ring Gear. • SFI rated.

Attributes:

• GTIN: 00887753011930
• Brand Name: McLeod
• Crankshaft to Flywheel Bolt Quantity: 8-bolt
• Disc Diameter (in.): 10.000/10.500/10.950/11.000 in.
• Engine Balance: Internal
• Make: Mopar
• Marine Use: No
• Material: Billet steel
• Note: CENTERBORE/CRANK BOSS: Because of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft boss fit may have variations from slip-fit to slight interference. Interference at the crankshaft “boss” can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care.
• Pressure Plate Style: Borg & Beck/Diaphragm/Long
• Quantity: Sold individually.
• Replaceable Friction Surface: No
• Ring Gear Tooth Quantity: 143-tooth
• SFI 1.1 Approved: Yes
• Weight: 30.000 lbs.

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14.5 x 14.5 x 2 inches
• Weight: 30 lb
