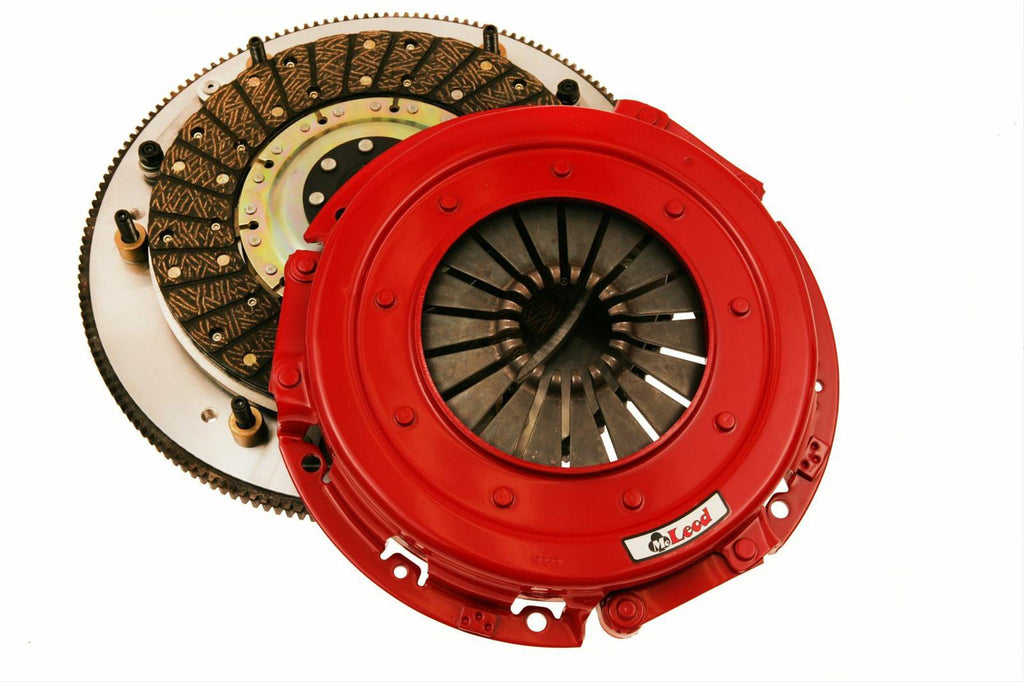

RST: Steel Flywheel: Ford 1996-10 4.6L 8 Bolt Crank: 1-1/16 X 10: 164T

Intended for the high horsepower street fan, the McLeod RST twin disc clutch kit is an economically priced twin disc clutch kit. Able to handle 800hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able. Organic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street only performance enthusiast. This unit is not intended for competition use! Look to our RXT and RXT 1200 for those applications. This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a Patented Approved adapter ring to bolt to your supplied flywheel. Complete Unit with Dedicated Flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars.

• • Lighter than Stock Pedal Feel. • Organic Facings for Smooth Engagement. • Excellent Release Qualities. • Bolts to Most Flywheels. • Available with Aluminum or Steel Flywheel.

Attributes:

• GTIN: 00887753316455
• Brand Name: McLeod
• Alignment Tool Included: Yes
• Clutch Disc Quantity: 2
• Clutch Usage: Performance
• Crankshaft to Flywheel Bolt Quantity: 8-bolt
• Disc Diameter (in.): 9.687
• Disc Material: Organic
• Disc Style: Full face
• Engine Balance: Internal
• Flywheel Included: Yes
• Flywheel Material: Billet steel
• Hardware Included: Yes
• Horsepower Rating: 800
• Hub Style: Solid
• Input Shaft Diameter: 1.063
• Input Spline Quantity: 10
• Make: Ford
• Pilot Bushing Included: No
• Pressure Plate Style: Diaphragm
• Quantity: Sold as a kit.
• Ring Gear Tooth Quantity: 164-tooth
• Throwout Bearing Included: No

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 16 x 17 x 5.5 inches
• Weight: 52 lb
