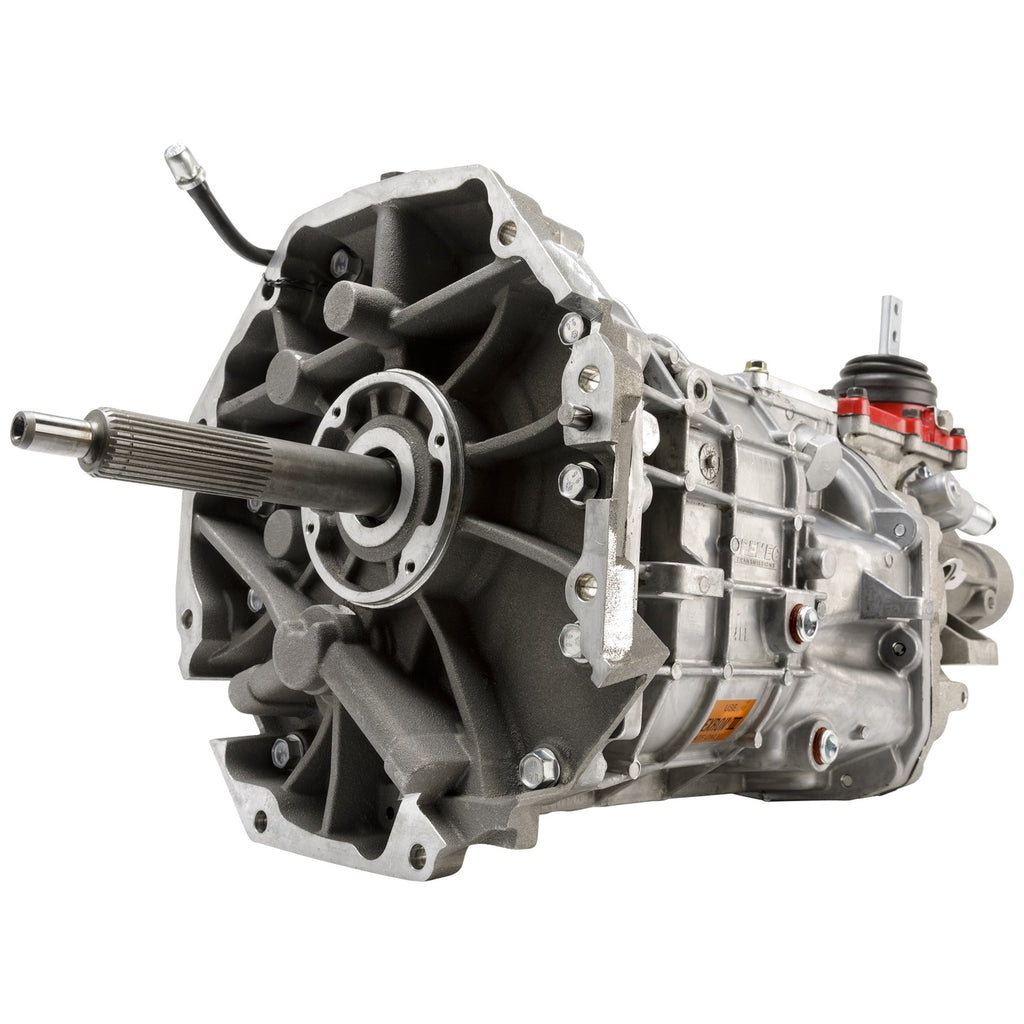

Tremec Magnum T-56 6 Speed Transmission: 1-1/8 X 26 Spline: GM LS

• • 6-speed manual transmission. • 700 lb-ft. of torque capacity. • 135 lbs. dry. • Choice of two different gear ratio sets (2.66 or 2.97). • Multiple shifter locations & dual speedo pickups for unmatched versatility.

Attributes:

• GTIN: 00887753316677
• Brand Name: McLeod
• Bellhousing Included: No
• Case Material: Aluminum
• Fifth Gear Ratio: 0.80:1
• First Gear Ratio: 2.66:1
• Forth Gear Ratio: 1.00:1
• Input Shaft Diameter: 1.125
• Input Shaft Spline Quantity: 26
• Number of Gears: Six
• Output Shaft Spline Quantity: 31
• Reverse Gear Ratio: 2.90:1
• Second Gear Ratio: 1.78:1
• Shifter Included: Yes
• Sixth Gear Ratio: 0.63:1
• Third Gear Ratio: 1.30:1
• Torque Capacity: 700
• Yoke Included: No
• Yoke Style: Slip-on

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 39 x 15 x 17 inches
• Weight: 146 lb
