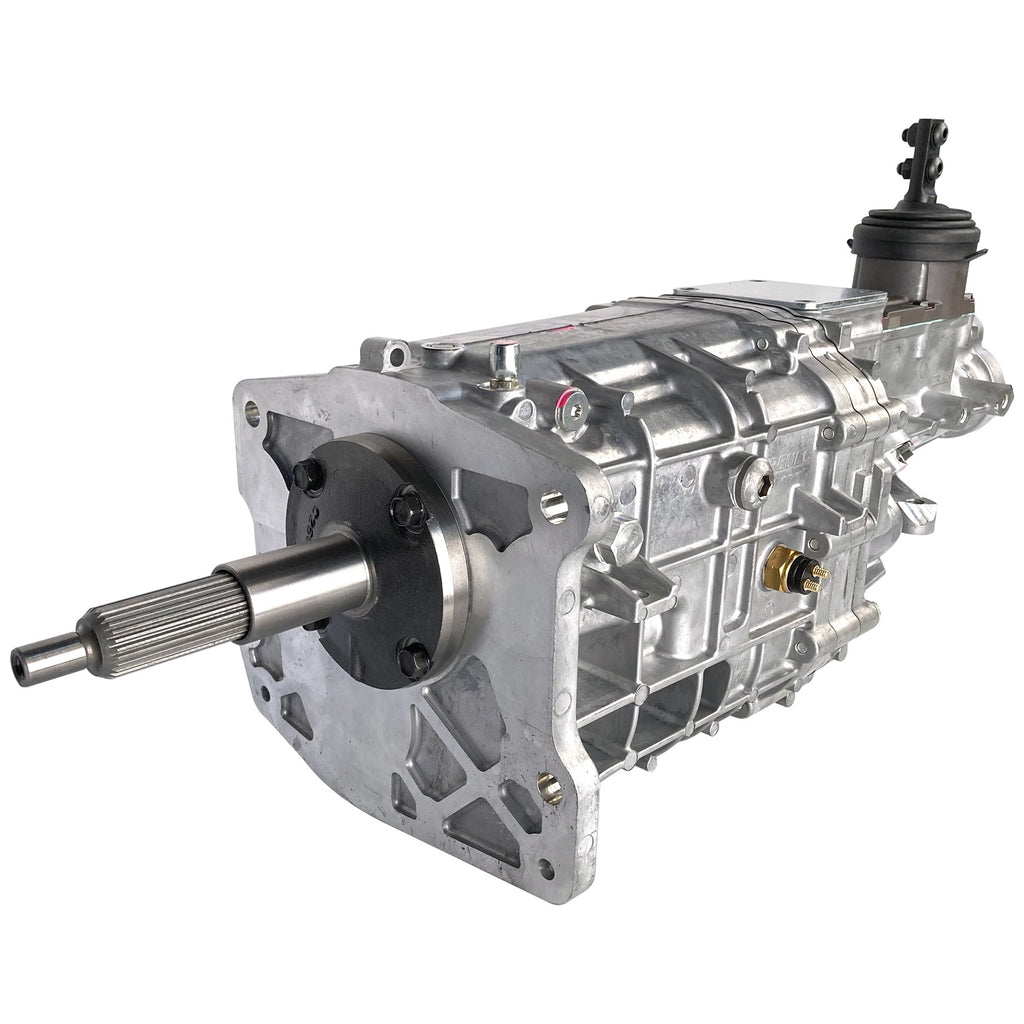

Tremec TKX 5 Speed Transmission: GM: 1-1/8x26: .81 5th

TREMEC is pleased to announce the release of the new TKX, a 5-speed RWD manual transmission developed solely for the aftermarket. For the development of the new transmission, TREMEC engineers took a forward-looking approach to finding the best and most efficient solution. This included universal packaging, excellent shifting performance, and extreme durability. The end result is superior shift-ability with smooth shifts at high RPMs through the use of multi-cone synchronizers and hybrid synchronizer rings. At the same time, noise, vibration and harshness (NVH) performance is optimized with a gear layout to best control stress levels, while providing structural stiffness with a ribbed, 3-piece aluminum housing. Durability is further optimized with oversized gear widths, gaskets at all flanges and caged needle bearings in all gear positions. Whether restoring or upgrading a classic muscle car or a 1930s-era roadster coupe, the new TREMEC TKX 5-speed RWD manual transmission delivers a top-quality drivetrain solution.

• • 600 lb.-ft. of torque capacity. • Shifts at 7,500 RPMs. • Compact, end-loaded design provides clearance. • Separate GM and Ford case patterns.

Attributes:

• GTIN: 00887753677310
• Brand Name: McLeod
• Bellhousing Included: No
• Case Material: Aluminum
• Fifth Gear Ratio: 0.81:1
• First Gear Ratio: 2.87:1
• Forth Gear Ratio: 1.00:1
• Input Shaft Diameter: 1.125
• Input Shaft Spline Quantity: 26
• Number of Gears: Five
• Output Shaft Spline Quantity: 31
• Reverse Gear Ratio: 2.56:1
• Second Gear Ratio: 1.89:1
• Shifter Included: Yes
• Third Gear Ratio: 1.28:1
• Torque Capacity: 600
• Yoke Included: No
• Yoke Style: Slip-on

Extended Information:

• Country of Origin: US
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 34 x 14 x 17 inches
• Weight: 99 lb
