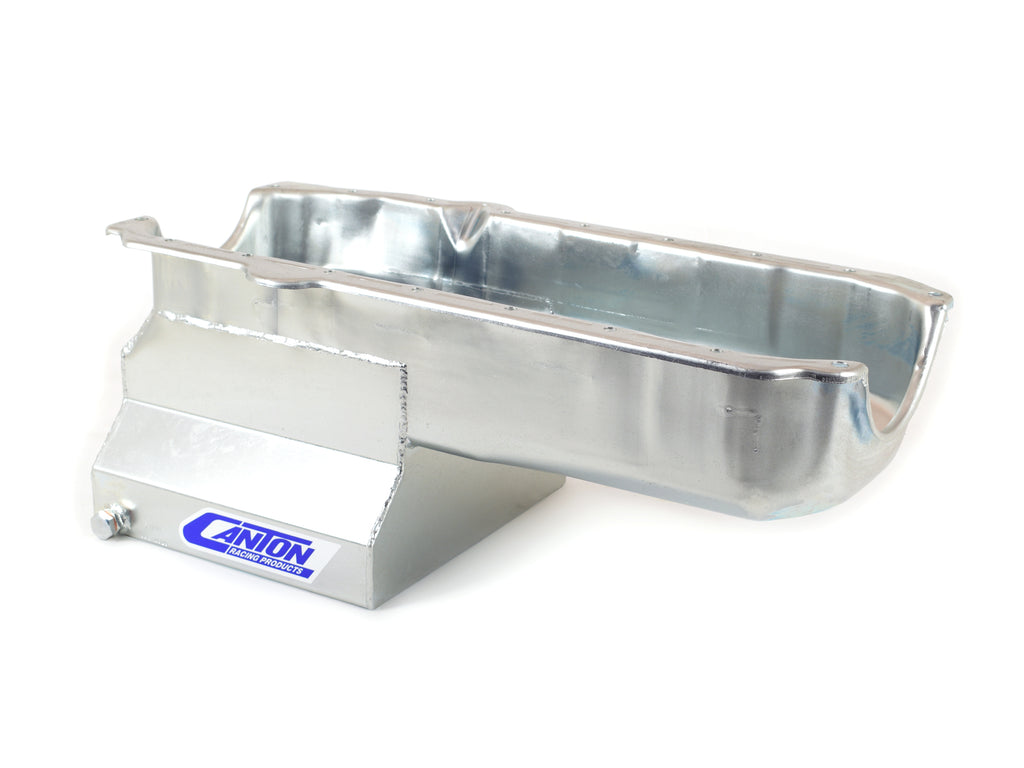

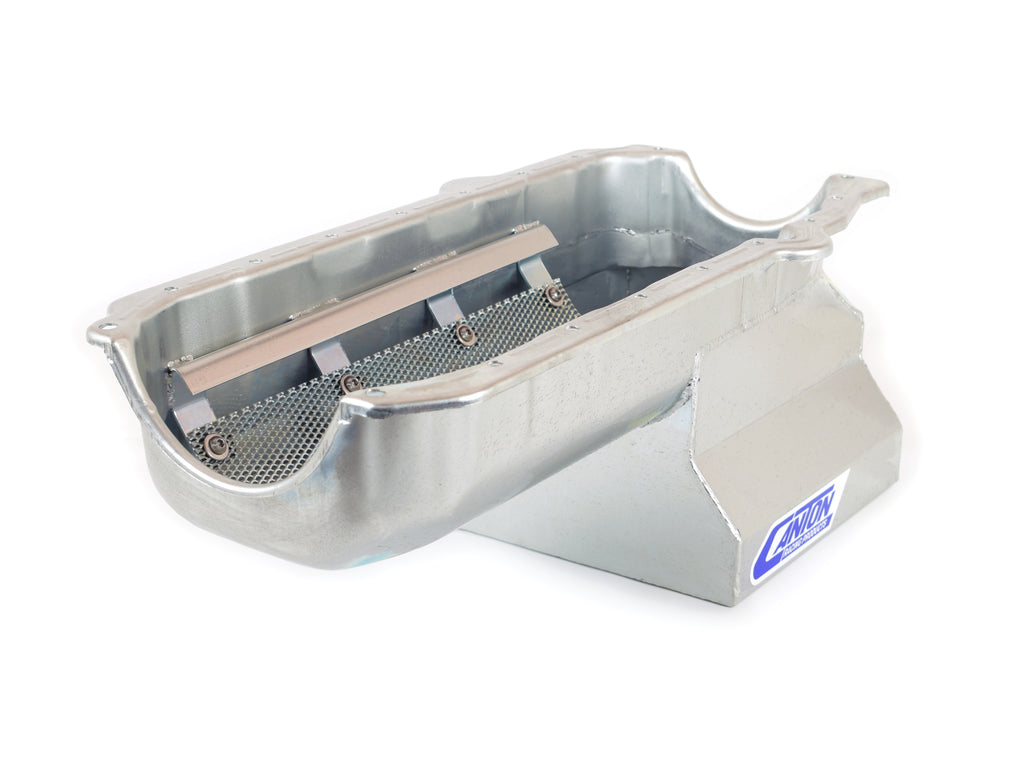

Canton 13-100 Oil Pan Small Block Chevy Pre-1980 Drag Race T Sump Pan

• Clears 3.875" Stroke
• 8 qt System Capacity
• Drag Racing Trap Door Baffle System
• Windage Tray
• Crank Scraper
• Magnetic Drain Plug

Attributes:

• GTIN: 00887753711601
• Brand Name: Canton
• Baffled: Yes
• Capacity: 8 Quart System Capacity
• Crank Scraper Included: Yes
• Dipstick Port: No
• Drain Plug Included: Yes
• Engine: For S.B. Chevy Pre-1980 Blocks
• Feature 1: Features Competition Oil Recovery System
• Feature 2: Removable Screen Windage Tray
• Feature 3: Built in Crank Scraper
• Feature 4: Trap Door Baffle For Oil Control
• Feature 5: Magnetic Drain Plug
• Finish: Silver Plating
• Gasket or Seal Included: No
• Hardware Included: No
• Kicked Out: Yes
• Material: 16 Gauge Steel
• Pickup Included: No
• Recommended Accessory 1: 20-060 - Pickup for Small Block Standard Volume Pumps M55 & M55A
• Recommended Accessory 2: 20-090 - Pickup for Small Block High Volume Pump M55HV
• Recommended Accessory 3: 20-095 - Pickup for Small Block High Volume Pump M155HV with 3/4" Inlet
• Recommended Accessory 4: 88-100 ? SBC Pre ?85 Oil Pan Gasket
• Stoke: 3.875 inches
• Sump Depth: 8.5 inches
• Sump Width: 10.5 inches
• Windage Tray Included: Yes

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 23 x 12 x 9 inches
• Weight: 14 lb
