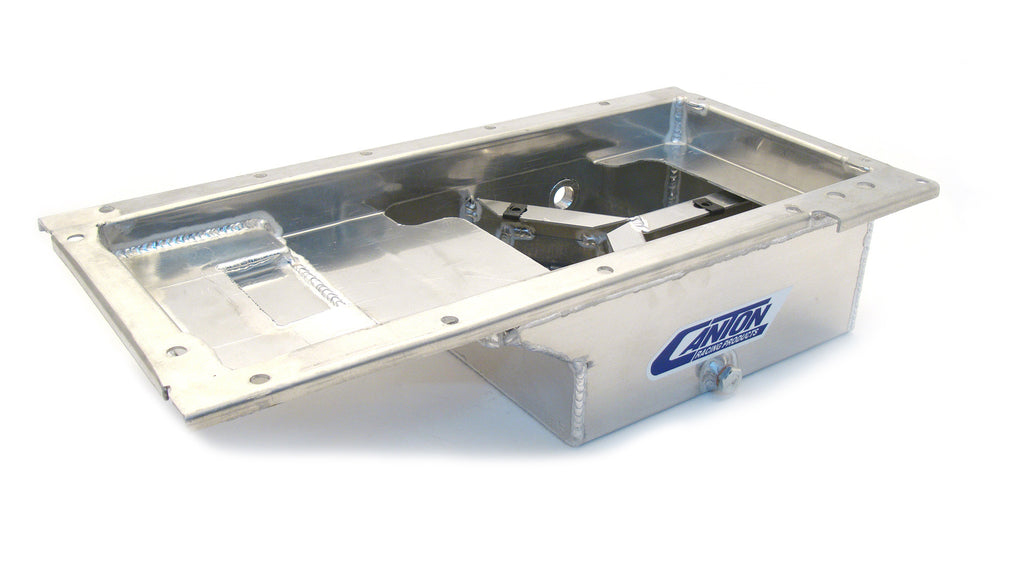

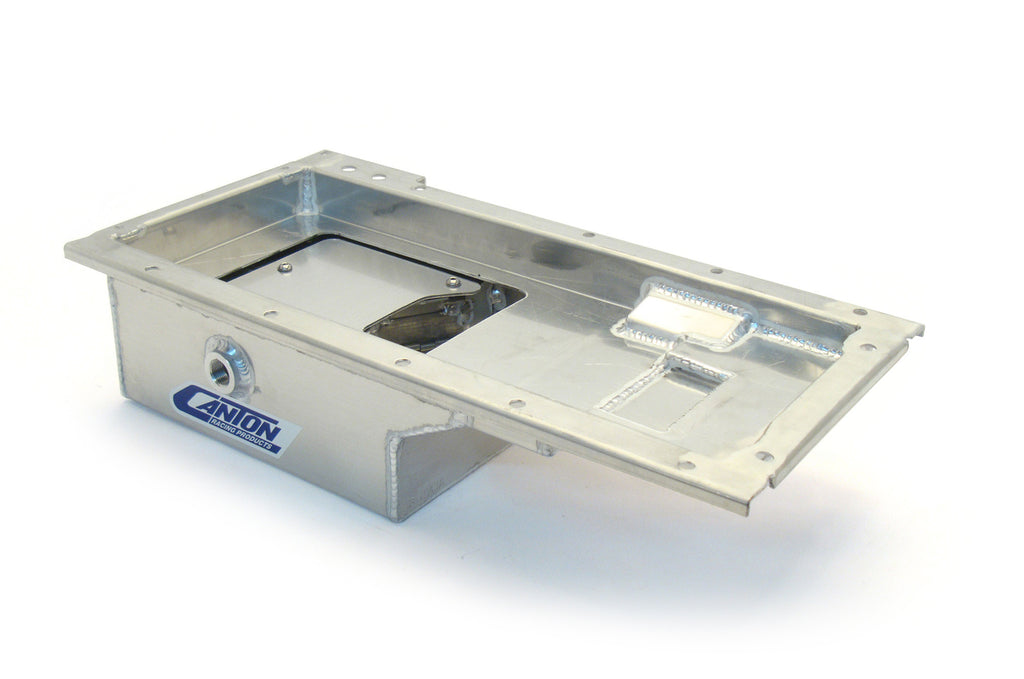

Canton 13-270A Oil Pan For GM LS1 LS6 5 1/4 Inch Deep Alum F-Body Race Baffled

• 6.5 qt System Capacity
• Drag Race Trap Door Baffle Assembly
• Removable Windage Anti-Slosh Baffle
• Provision for 20mm oil temperature sensor
• Magnetic Drain Plug

Attributes:

• GTIN: 00887753711700
• Brand Name: Canton
• Baffled: Yes
• Capacity: 6 Quart System Capacity
• Crank Scraper Included: No
• Dipstick Port: No
• Drain Plug Included: Yes
• Engine: For GM LS Blocks
• Feature 1: Double Trap Door Baffle For Oil Control
• Feature 2: Bolt On Windage / Anti-Slosh Baffle For Oil Control
• Feature 3: 20mm Fitting for GM Low Oil Warning Sender
• Feature 4: Magnetic Drain Plug
• Feature 5: Can Be Used With OEM Windage Tray #12558253
• Feature 6: To Use With Canton #22-405 20mm Plug If Not Using Oil Sender Port
• Feature 7: To Use With Canton Filter Adapter or Filter Mount
• Finish: Raw Aluminum
• Gasket or Seal Included: No
• Hardware Included: No
• Kicked Out: Yes
• Material: .100 Thick Aluminum
• Pickup Included: No
• Recommended Accessory 1: 21-870 - LS flywheel cover
• Recommended Accessory 2: 22-302 - GM LS Oil Pan Stud Kit
• Recommended Accessory 3: 22-630 - LS1 Remote Filter Adapter
• Recommended Accessory 4: 22-632 - LS1 90 Degree Remote Filter Adapter
• Recommended Accessory 5: 22-631 - LS1 Pan Mounted Spin-on Filter Mount
• Recommended Accessory 6: 22-620 - Billet Aluminum Spin-on Filter Adapter
• Recommended Accessory 7: 22-405 - 20mm Plug(needed if Not using low oil sender
• Stoke: 3.62 inches
• Windage Tray Included: No

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 26 x 14 x 10 inches
• Weight: 17 lb
