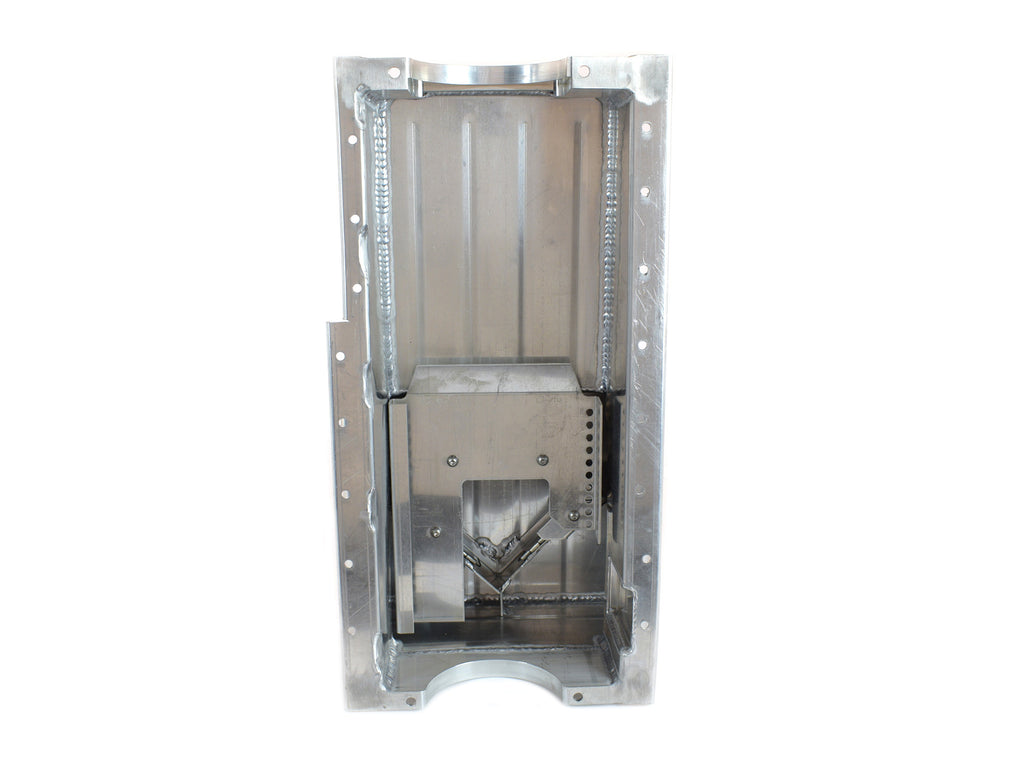

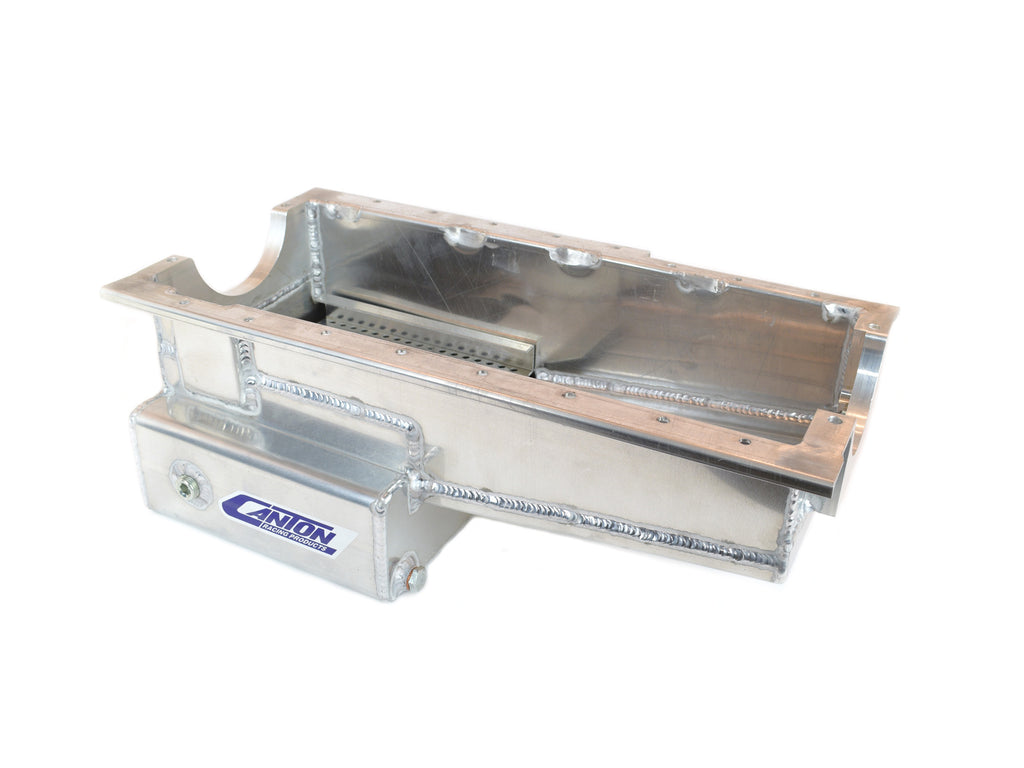

Canton 13-630A Oil Pan For Ford 289-302 Front Sump Baffled Aluminum Pan

• 8 qt System Capacity
• Four Trap Door Baffles
• Removable Windage/Anti-Slosh Baffle
• Billet Seals For a Proper Fit.
• 1/2" NPT Temperature Bung
• Provision For Our Pan Mounted Dipstick
• Magnetic Drain Plug

Attributes:

• GTIN: 00887753711908
• Brand Name: Canton
• Baffled: Yes
• Capacity: 8 Quart System Capacity
• Crank Scraper Included: No
• Dipstick Port: Yes
• Drain Plug Included: Yes
• Engine: For Ford 302 Blocks
• Feature 1: Features Four Trap Door Baffle Assembly
• Feature 2: Bolt On Windage / Anti-Slosh Baffle For Oil Control
• Feature 3: Provision for Canton Pan Mounted Dipstick
• Feature 4: 1/2 NPT Temp Sensor Bung
• Feature 5: Magnetic Drain Plug
• Feature 6: Billet Seals for a Proper Fit
• Finish: Raw Aluminum
• Gasket or Seal Included: No
• Hardware Included: No
• Kicked Out: Yes
• Material: .100 Thick Aluminum
• Pickup Included: No
• Recommended Accessory 1: 15-611 - 3/4" Dia. Pickup
• Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
• Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4? N.P.T. Fitting
• Recommended Accessory 4: 88-600 ? Small Block Ford 289-302 Four Piece Oil Pan Gasket
• Stoke: 3.4 inches
• Sump Depth: 8 inches
• Sump Width: 12 inches
• Windage Tray Included: No

Extended Information:

• Country of Origin: US
• Emissions : 1
• Life Cycle Status: Discontinued

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 26 x 14 x 10 inches
• Weight: 13 lb
