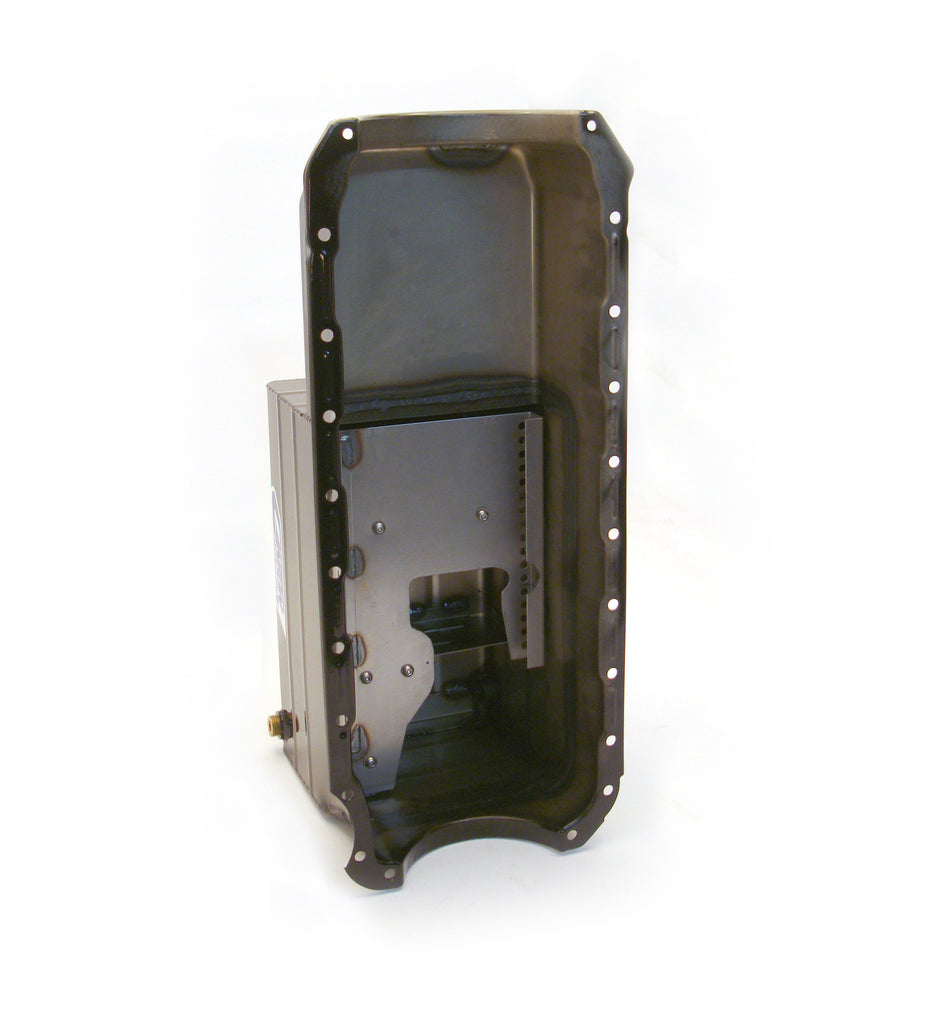

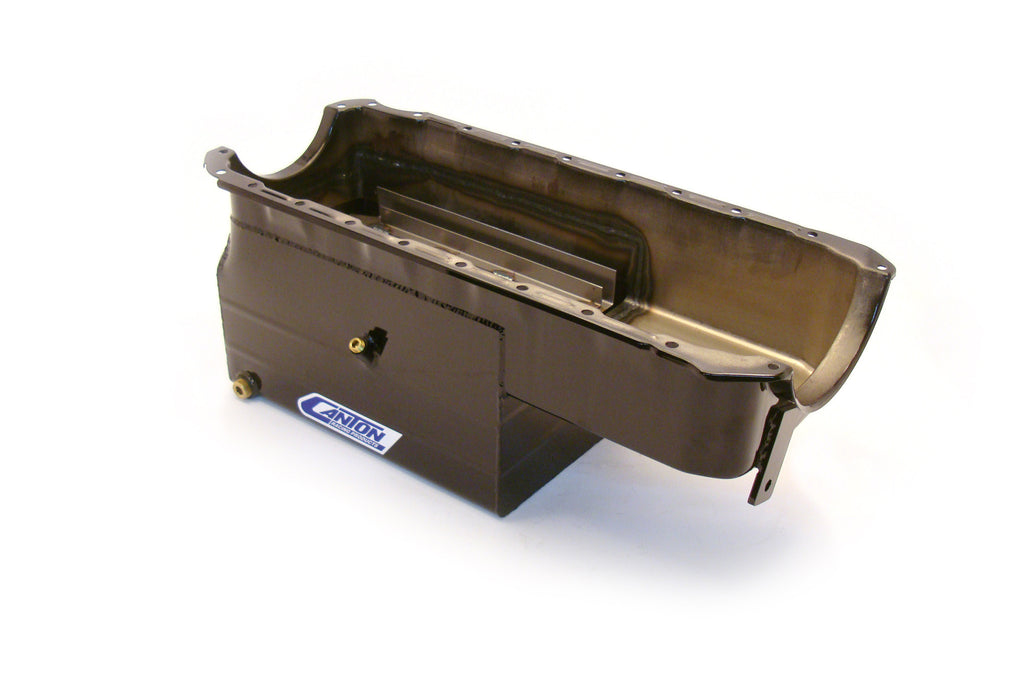

Canton 18-380 Oil Pan Big Block Chevy Mark 4 Deep Sump Offshore Marine Oil Pan

• 10 qt Pan Capacity
• 14 ga. Steel Construction
• Double Trap Door Baffles
• Removable Windage/Anti-Slosh Baffle
• 1/2" NPT Drain Fitting
• Provision For our Pan Mounted Dipstick
• Powder Coating & Brass Plugs For Corrosion Protection

Attributes:

• GTIN: 00887753714459
• Brand Name: Canton
• Baffled: Yes
• Capacity: 10 Quart System Capacity
• Crank Scraper Included: No
• Dipstick Port: Yes
• Drain Plug Included: Yes
• Feature 1: 10 qt Pan Capacity
• Feature 2: 14 ga. Steel Construction
• Feature 3: Double Trap Door Baffles
• Feature 4: Removable Windage/Anti-Slosh Baffle
• Feature 5: 1/2" NPT Drain Fitting
• Feature 6: Provision For our Pan Mounted Dipstick
• Feature 7: Powder Coating & Brass Plugs For Corrosion Protection
• Finish: Black Gloss Powdercoat
• Gasket or Seal Included: No
• Hardware Included: No
• Kicked Out: No
• Material: 14 Gauge Steel
• Pickup Included: No
• Recommended Accessory 1: 18-381 - Our Special Pickup Built From Extra Heavy Wall Tubing
• Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
• Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
• Recommended Accessory 4: 88-300 ? BBC Mark IV Oil Pan Gasket
• Stoke: 4.5 inches
• Sump Depth: 10 inches
• Windage Tray Included: No

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 26 x 14 x 10 inches
• Weight: 24 lb
