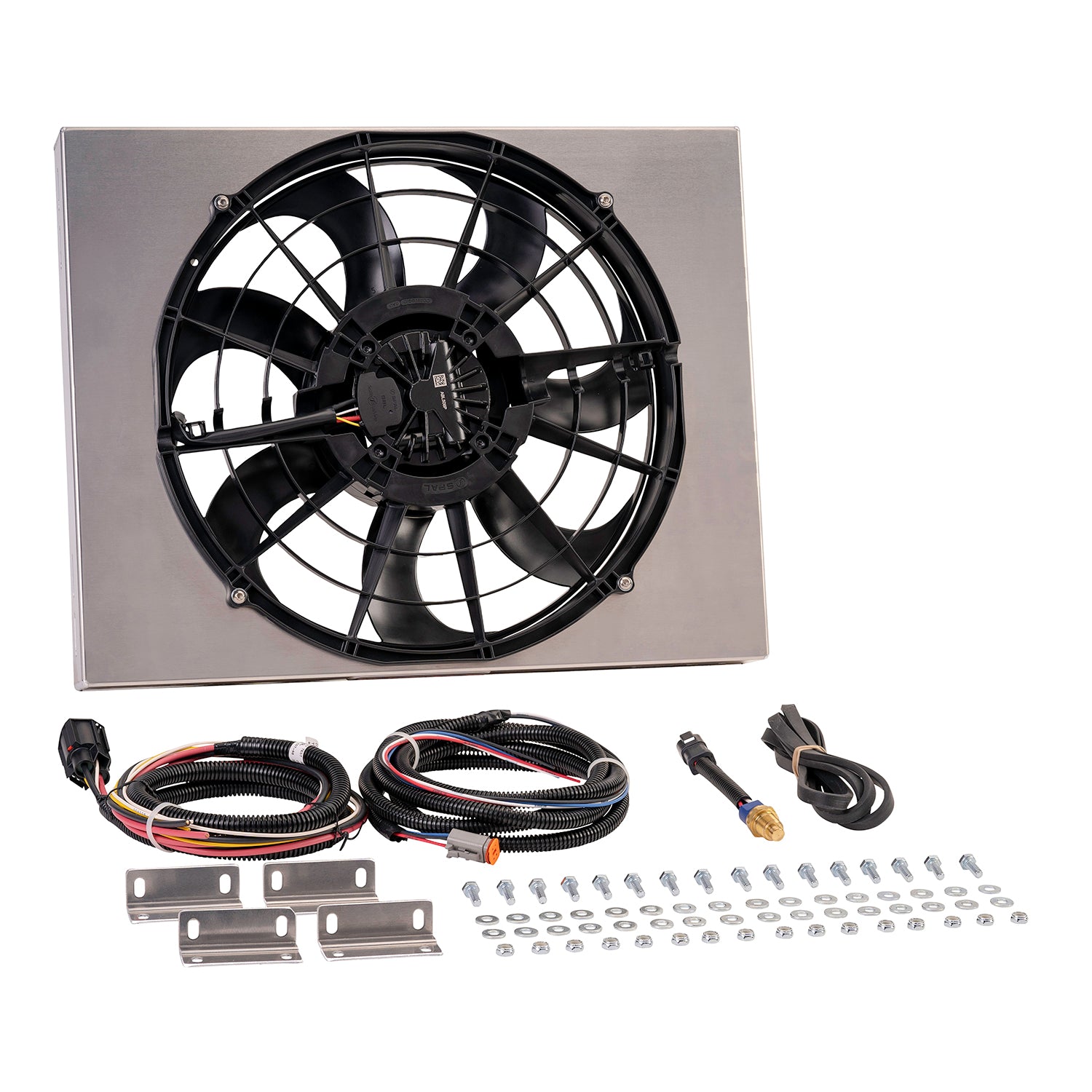

Powerpack - Brushless Single 17" RAD Fan/Alum Shroud Kit W/ PWM Controller

Get complete control of your engine temperature! Derale Performance has combined their high-performing shrouded Powerpacks with the ultimate fan controller. Using a brushless electric fan incorporated into an engineered shroud, this Powerpack can conquer even the most difficult cooling conditions. This unit features a Aluminum shroud measuring 22 1/4" wide by 17 5/8" top to bottom and is only 3" in overall depth to offer a precision fit. This 17" brushless electric fan is one of the best in our line-up offering up to 2800 CFM and is specifically designed to thrive on thick, tight fin radiator cores. Now add the PWM Fan Controller with built-in soft start technology. The controller utilizes Pulse Width Modulation to constantly adjust electric fan speeds from 0-100%, to maintain 185°F temperature. No more reacting to the engine temps, you can control it! This allows the 17” brushless electric fan to operate at the percentage needed, instead of 100% all the time, therefore increasing component life and eliminating amperage spikes.

• Powerpack - Brushless Single 17" RAD Fan/Alum Shroud Kit w/ PWM Controller

Attributes:

• GTIN: 00083277679506
• Brand Name: Derale
• Amp draw: 35
• CFM: 2800
• Color: Gray/Black
• Height: 17-5/8
• Overall depth: 3
• Shroud depth: 1-1/8
• Width: 22-1/4

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 26.5 x 23.38 x 5.5 inches
• Weight: 14.1 lb
