SN95 2V L1E Fuel System (dual pump)

 TI Auto F90000285 x 2

FC2 Controller with wiring

Circuit breaker upgrade

PTFE -08 Feed / Return

128mm Stainless Steel Filter

 Add billet mounting bracket

Part Number: 200043

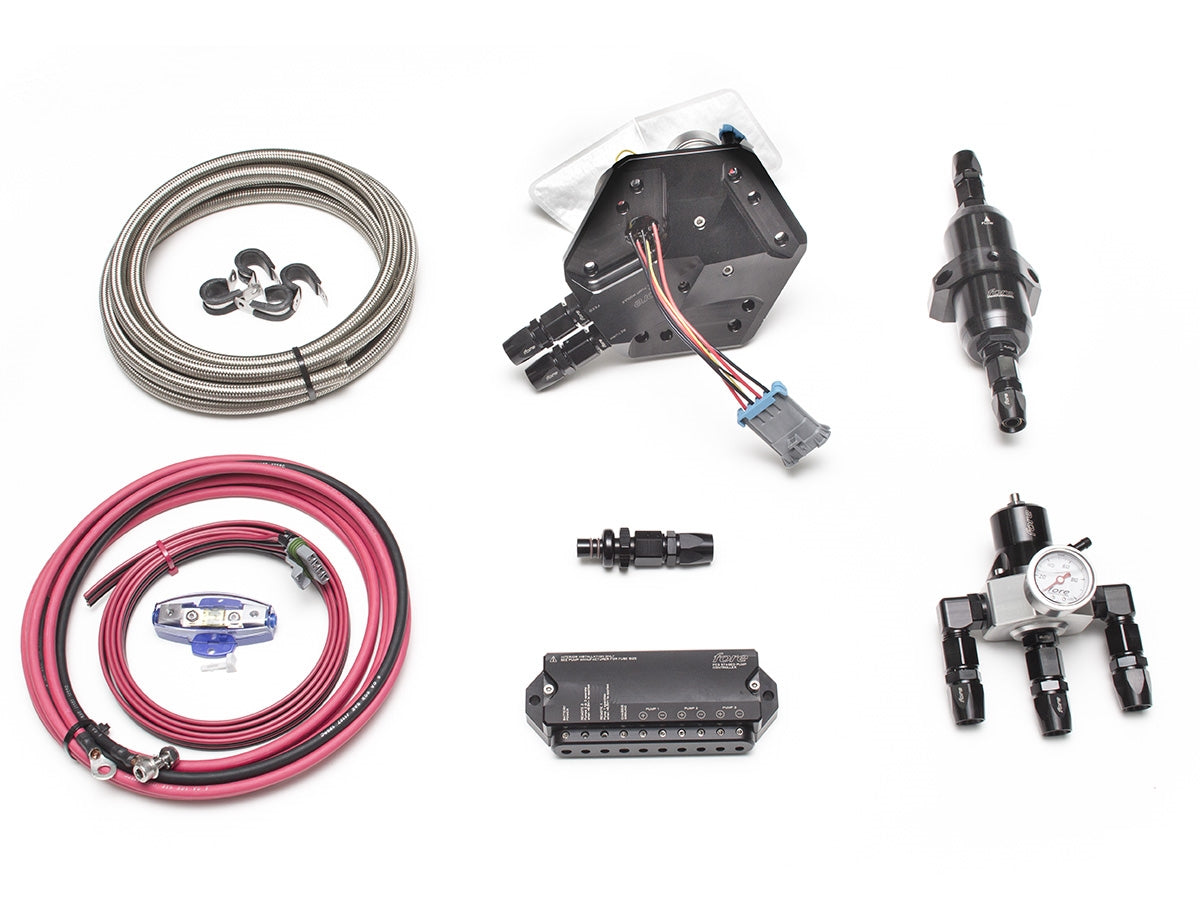

700+ rwhp capable return fuel system uses the factory fuel rails. Supply fuel is regulated before entering the factory fuel rails. Proper upgraded feed line and filtration included. Perfect system for applications where factory fuel rails must be used.

• Uses OE fuel rails
• Built with high end components, upgradeable to 1200+ rwhp

• SN95 Fuel Pump Module (dual pump)
• F2i Fuel Pressure Regulator
• 88mm Inline Fuel Filter
• All fittings, hose, and hardware necessary to complete typical fuel line plumbing
• 30 feet fuel line (your choice of Startite or PTFE)
• Qty 8 compression style billet hose ends
• Qty 2, low profile 90 degree billet o-ring fittings
• Qty 5, straight AN to o-ring fittings
• Qty 8, hose straps with stainless mounting screws
• Qty 1, 1/2 Springlock (male) to AN-8 (male) adapter

This is a stand alone fuel system. Professional installation and a custom tune is required. Qualified installers and tuners must be able to interface to the OE harness and FPDM, understand proper component placement, hose routing, and deliver the vehicle with factory-like pump prime/on/off logic with no error codes. Fore Innovations will supply basic system schematics and detailed component level instructions, and can provide troubleshooting of the performance and function of our system and components, but we will not assist with tuning and/or interfacing to the OE harness, ECU, or FPDM(s).

This fuel system generates substantially more heat and capacity than the original fuel system. The high powered fuel pumps make much more heat than the factory pump and the composite fuel tank construction acts as an insulator and stores heat. Additionally, the shape of the factory fuel tank limits the pickup capacity of this fuel system. The user (driver) must keep more fuel (than normal) in the tank at all times to minimize heat damage and ensure adequate fuel pickup.

Fitment:

• 1996-2004 Mustang GT, Bullitt, V6, etc.
• 1996-1998 requires 1999-2004 fuel tank and level sender (recommend 2003-2004 Cobra tank)
• Requires 2003-2004 Cobra fuel tank gasket (reusable)
