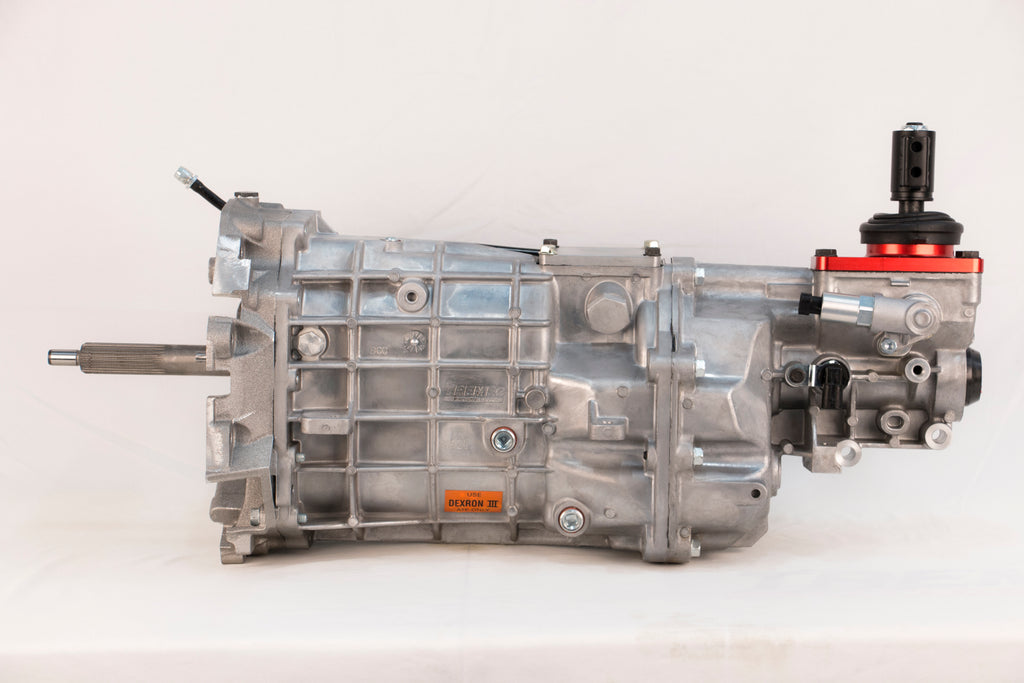

Tremec Magnum-F 6 Speed Transmission: GM LS: 1-1/8x26

Designed to replace T-56 transmissions in 1998-2002 GM F-bodies, the Magnum-F leverages TREMEC's TR-6060/Magnum architecture in order to provide fourth-gen enthusiasts significantly improved performance and relief from a shrinking pool of quality T-56 replacement parts. One shifter location is designed for LS1-powered 1998-2002 F-bodies and other applications that utilize a similar shifter position. Beneficiaries include third-generation F-bodies, LT1-powered fourth-gens, LS-swapped late models of all varieties, and sport compact applications such as A80 Supras, FD RX-7s, and more! Where the original Magnum shifter locations may prove too far forward, and the extended length Magnum XL's too far back, the Magnum-F's in-between position often proves to be just right.

• • 6-speed manual transmission. • 700 lb-ft. of torque capacity. • 135 lbs. dry. • Choice of two different gear ratio sets (2.66 or 2.97). • Multiple shifter locations & dual speedo pickups for unmatched versatility.

Attributes:

• GTIN: 00887753678010
• Brand Name: McLeod
• Bellhousing Included: No
• Case Material: Aluminum
• Fifth Gear Ratio: 0.74:1
• First Gear Ratio: 2.97:1
• Forth Gear Ratio: 1.46:1
• Input Shaft Diameter: 1.125
• Input Shaft Spline Quantity: 26
• NOTE: 1993-97 LT1 Applications will need a Push Style Clutch Conversion. Call for details. 714-630-2764
• Number of Gears: 6
• Output Shaft Spline Quantity: 31
• Reverse Gear Ratio: 2.90:1
• Second Gear Ratio: 2.10:1
• Shifter Included: Yes
• Sixth Gear Ratio: 0.50:1
• Third Gear Ratio: 1.46:1
• Torque Capacity: 700
• Yoke Included: No
• Yoke Style: Slip-on

Extended Information:

• Country of Origin: Mexico
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 46 x 22 x 25 inches
• Weight: 150 lb
