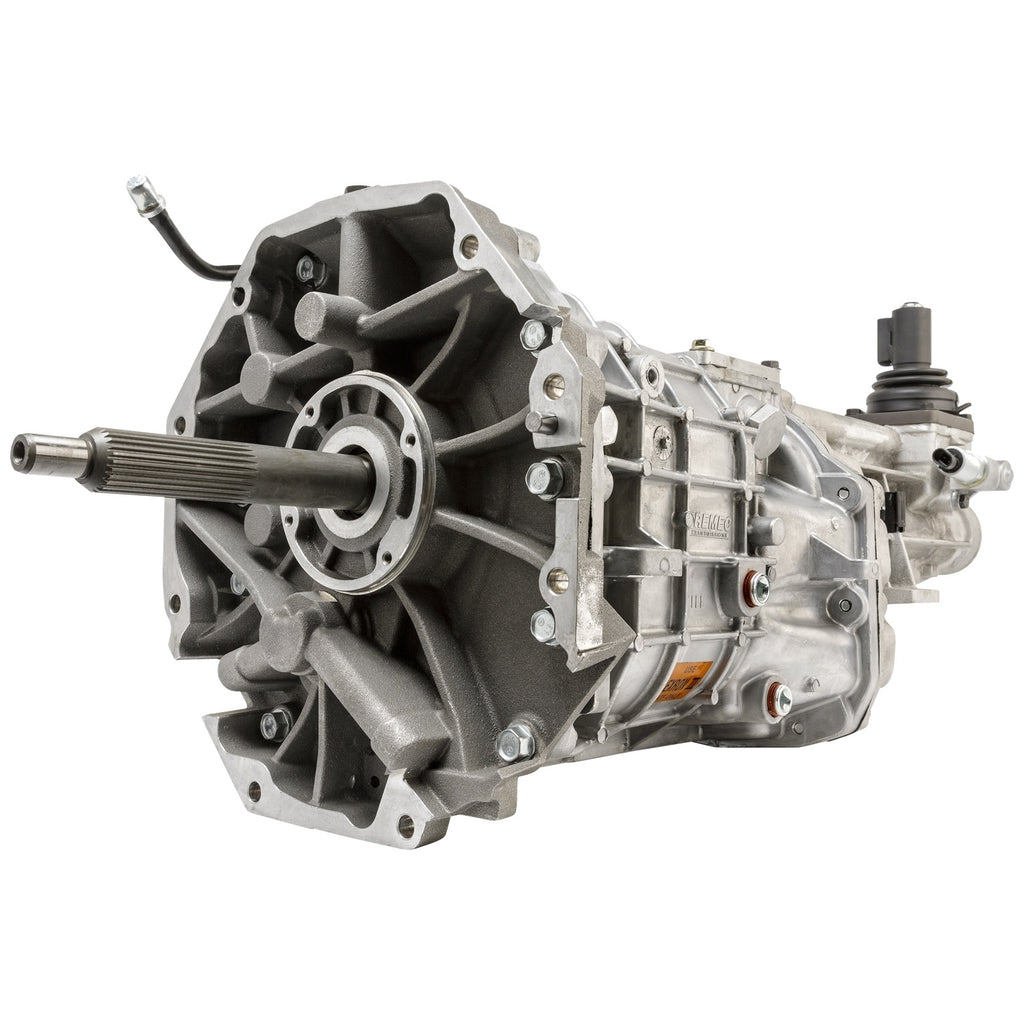

Tremec Magnum XL 6 Speed Transmission: 1-1/8 X 26 Spline: Ford Modular

The Magnum XL is an extension of our revered Magnum 6-speed series. Featuring all the most important content from the original, the XL retains the Magnum’s brute strength and sophistication, but eliminates its multiple shifter locations and dual speedo outputs. Refinements include a new extended length tail section designed to eliminate the semi-remote shifter found in many popular late-model applications. The Magnum XL (Part Numbers Starting with TUKT Only) also includes an SFI-Approved Steel Bellhousing, Swap Specific Crossmember And OE-Quality Mount. For Strength Purposes the Magnum XL Requires A 26-Spline Clutch and One-Piece Driveshaft.

• • 700 lb-ft torque capacity • Choice of two different gear ratio sets (2.66 or 2.97)

Attributes:

• GTIN: 00887753317575
• Brand Name: McLeod
• Bellhousing Included: No
• Case Material: Aluminum
• Fifth Gear Ratio: 0.80:1
• First Gear Ratio: 2.66:1
• Forth Gear Ratio: 1.00:1
• Input Shaft Diameter: 1.125
• Input Shaft Spline Quantity: 26
• Number of Gears: Six
• Output Shaft Spline Quantity: 31
• Reverse Gear Ratio: 2.90:1
• Second Gear Ratio: 1.78:1
• Shifter Included: Yes
• Sixth Gear Ratio: 0.63:1
• Third Gear Ratio: 1.30:1
• Torque Capacity: 700
• Yoke Included: No
• Yoke Style: Slip-on

Extended Information:

• Country of Origin: US
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 46 x 22 x 25 inches
• Weight: 200 lb
